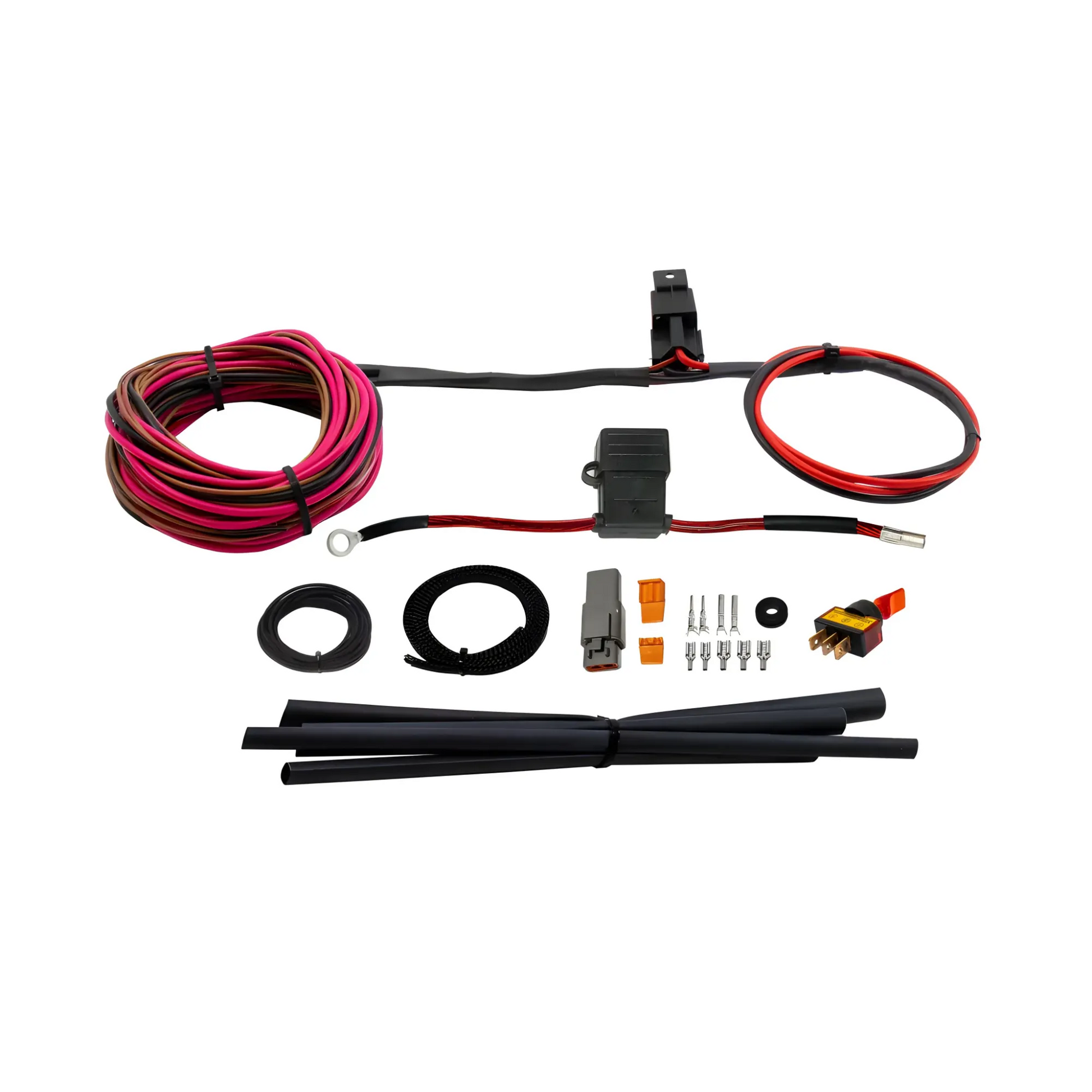

Nitrous Outlet DIY Stand Alone Bottle Heater Wiring Harness

• Easy wiring solution to installing a nitrous bottle heater_x000D_

• Harness Routing Instructions_x000D_

• Detailed Colored Wiring Diagram_x000D_

• Deutsch Connectors_x000D_

• High Quality Molex Terminals_x000D_

• Bueler 40/60 Amp Relay_x000D_

• Protective Expandable Wiring Loom_x000D_

• Automotive Copper Core Wire with Protective Silicone Coating_x000D_

• Inline 30 Amp Fuse_x000D_

• Illuminated toggle switch_x000D_

• Works in conjunction with or without a nitrous pressure safety switch

The Nitrous Outlet DIY Bottle Heater Pro Wiring Harness is designed to provide a quick and easy wiring solution to installing a nitrous bottle heater.

The most time consuming and complicated part of the wiring process is eliminated with the detailed instructions, colored wiring schematics, pin out sheet, and universally mounted prewired relay.

Installation requires 7 easy steps

Step 1: Determine location and mount the relay.
Step 2: Route the main power wire and ground wire.
Step 3: Route the wiring to the system components.
Step 4: Cover the wire with the protective expandable wiring loom.
Step 5: Cut the wire to length.
Step 6: Terminate the wiring ends and connect to the system components.
Step 7: Connect power and ground source and check operation.
