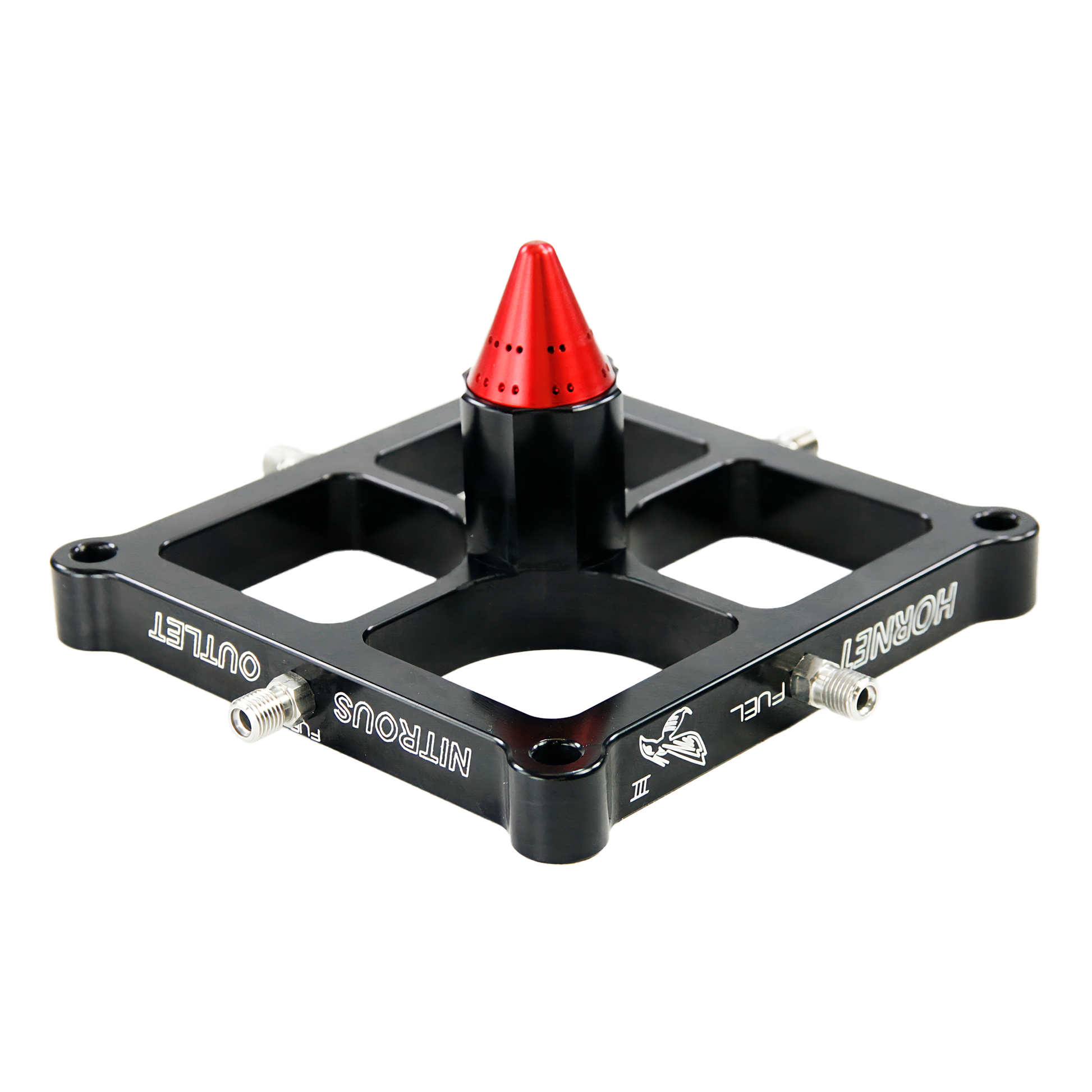

Nitrous Outlet 4500 Hornet 3 Plate (Dual Entry/Dual Stage)

• Revolutionary GEN III Design_x000D_
• Extended Reach Cone_x000D_
• 870 HP Max Flow_x000D_
• Dual Entry_x000D_
• 4500 Flange _x000D_
• 360° Discharge Pattern_x000D_
• Precise Atomization_x000D_
• Anodized Billet Aluminum Stinger Plate_x000D_
• Plate Only - Gasket, Jetting and Hardware NOT Included

Hornet Dual Stage, Generation 3:
The Hornet 3 is based on the Stinger 3 - the winningest nitrous plate on the market. Its conception is based in the idea that nitrous plates are not one-size-fits-all. Unlike the Hornet 2, the Hornet 3 discharges are designed to discharge right above the intake runner on deep plenum intakes.

Design:
The Hornet 3 is a dual-entry, dual-stage nitrous plate that provides a max flow of 870hp! The fuel discharge ports are on top and discharge at a downward angle towards the horizontal nitrous discharge. The nitrous will mix into the air stream allowing the engine vacuum to pull it into the cylinder. Distribution into the engine is dictated by the intake wall height and runner placement.

Construction:
The 4500 plate and cone are manufactured from 6061 billet aluminum. The nitrous plate is .75€ thick and black anodized with engraved Nitrous Outlet logos and Fuel / N2O entry marking. The cone is anodized red and features 16 nitrous discharge holes and 16 fuel discharge holes that discharge 1-7/8" below the carb flange. This is a plate only and no gaskets, jets, or hardware are included.

Application:
The Stinger 3 is designed to discharge right above the runner on intakes that measure 2-3/4€ or more from the top of the intake runner to the carburetor flange. On intakes that measure 2-1/2€ or less, the discharge will flow right into the intake runner. It will fit most 4150 flange single-plane intakes for carburetion or EFI.
